Технические характеристики
ПроизводительFANUC

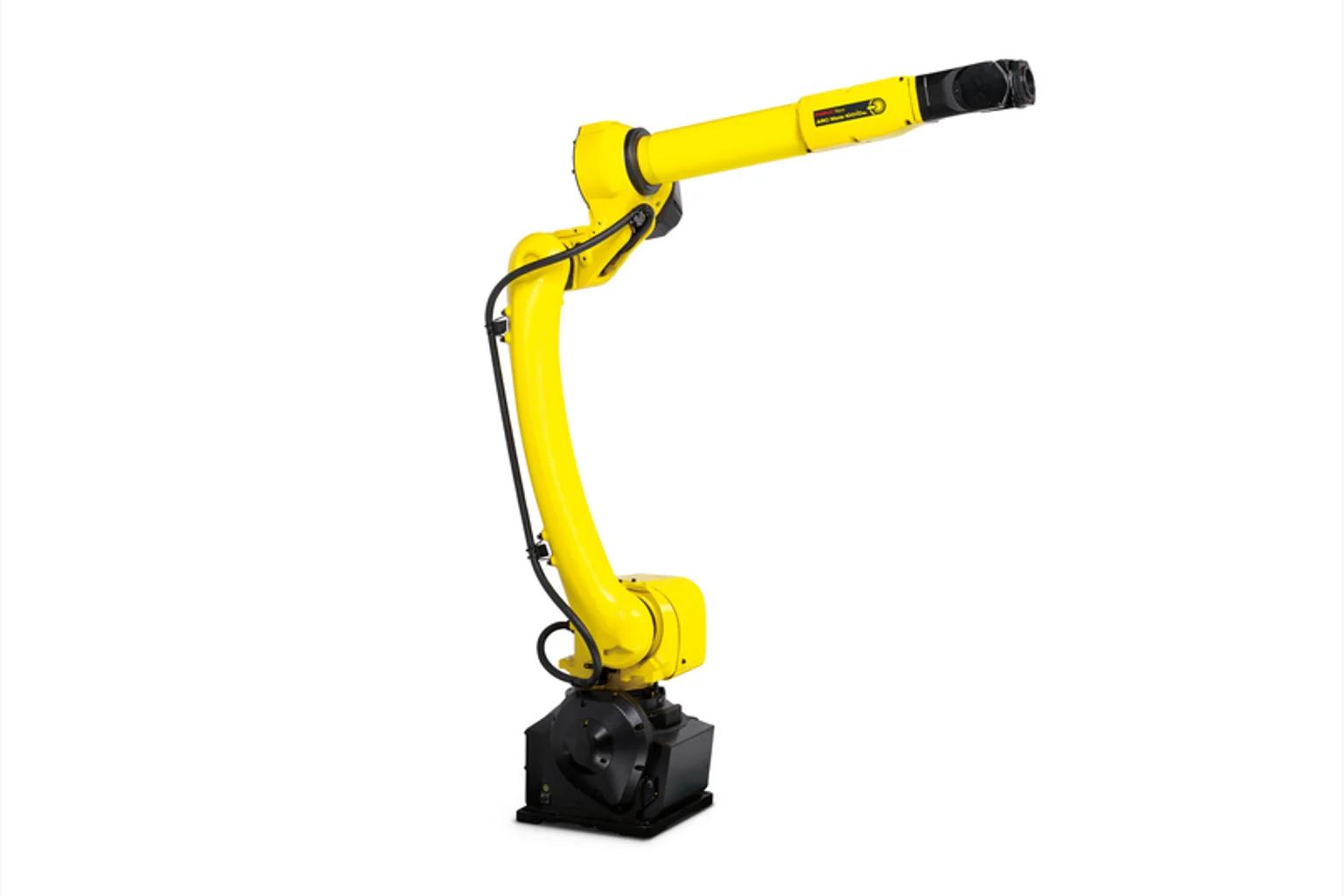

МодельFANUC ARC Mate 100iD/8L
КатегорияСварочные роботы
ControllerR-30iB Plus Controller
Motion range — J1340
Motion range — J2235 degrees
Motion range — J3455 degrees
Motion range — J4380 degrees
Motion range — J5360
Motion range — J6900
Maximum speed — J1210 (°/s)
Maximum speed — J2210 (°/s)
Maximum speed — J3220 (°/s)
Maximum speed — J4430
Maximum speed — J5450 (°/s)
Maximum speed — J6720 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption1 kW
Integrated Services — Integrated signals on upper arm In/Out1/1
Integrated Services — Integrated air supply1
Environment — Acoustic noise level57.4 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload8 kg
General attributes — Robot Reach2032 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.03 mm
General attributes — Mechanical weight180 kg
General attributes — J4 Moment16.1/ 0.63 (Nm)/Inertia (kgm²)
General attributes — J5 Moment16.1/ 0.63 (Nm)/Inertia (kgm²)
General attributes — J6 Moment5.9/ 0.061 (Nm)/Inertia (kgm²)
General attributes — Robot footprint343 x 343
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
