Технические характеристики
ПроизводительFANUC

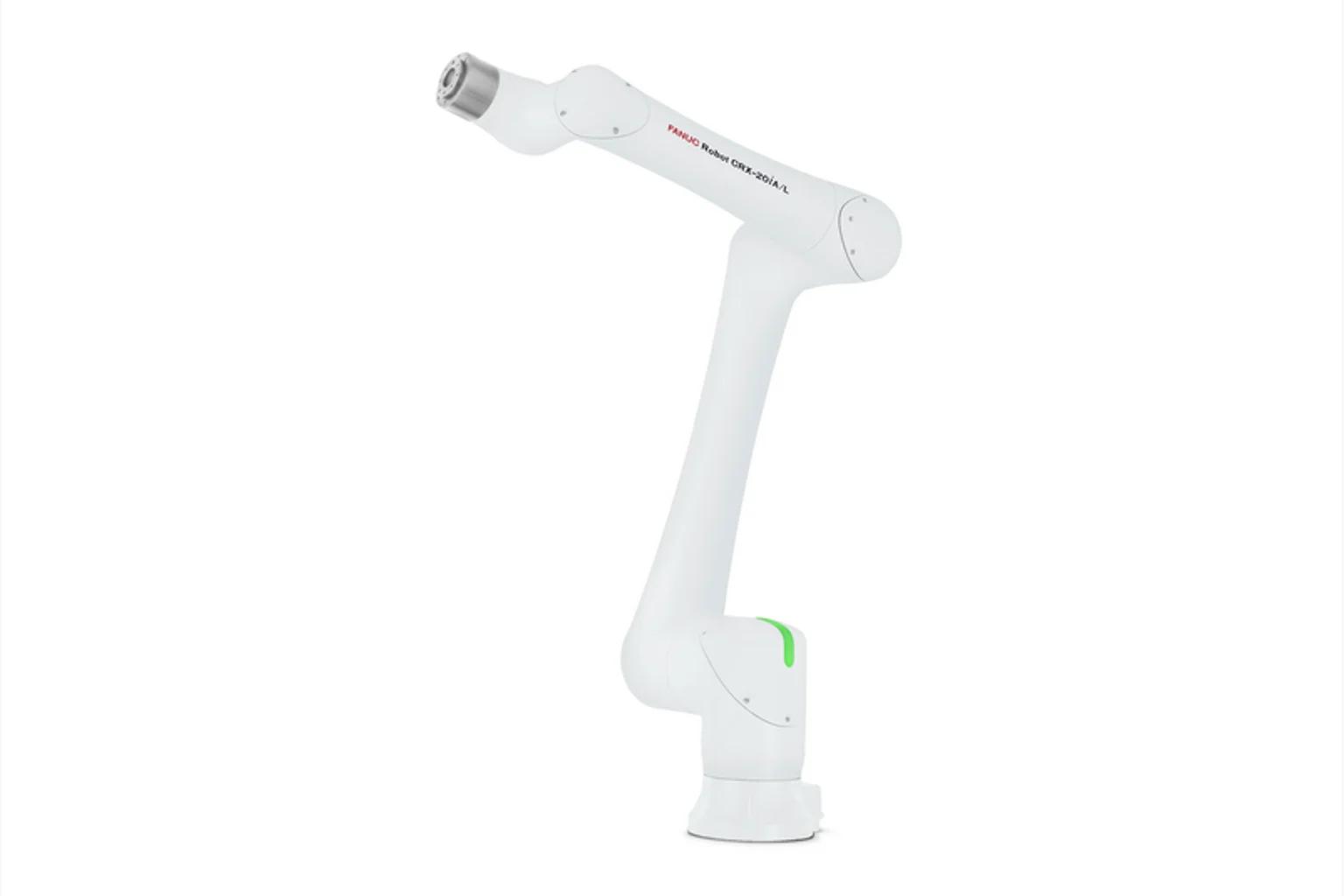

МодельFANUC CRX-20iA/L Food
КатегорияКоллаборативные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2360 degrees
Motion range — J3540 degrees
Motion range — J4380 degrees
Motion range — J5360
Motion range — J6450
Maximum speed — J180 (°/s)
Maximum speed — J280 (°/s)
Maximum speed — J3120 (°/s)
Maximum speed — J4112
Maximum speed — J590 (°/s)
Maximum speed — J6112 (°/s)
Electrical connections — Value (V)200-230 V
Electrical connections — Average power consumption0.4 kW
Integrated Services — Integrated air supply0
Environment — Acoustic noise level70 dB
General attributes — Payload0-10
General attributes — Robot Payload20 kg
General attributes — Robot Reach1418 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.04 mm
General attributes — Mechanical weight41 kg
General attributes — Maximum linear speed1000 mm/sec
General attributes — J4 Moment70.0/ 4.00 (Nm)/Inertia (kgm²)
General attributes — J5 Moment64.0/ 4.00 (Nm)/Inertia (kgm²)
General attributes — J6 Moment30.0/ 2.00 (Nm)/Inertia (kgm²)
General attributes — Robot footprint190
Protection — Body standard/optionalIP67
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
