Технические характеристики
ПроизводительFANUC

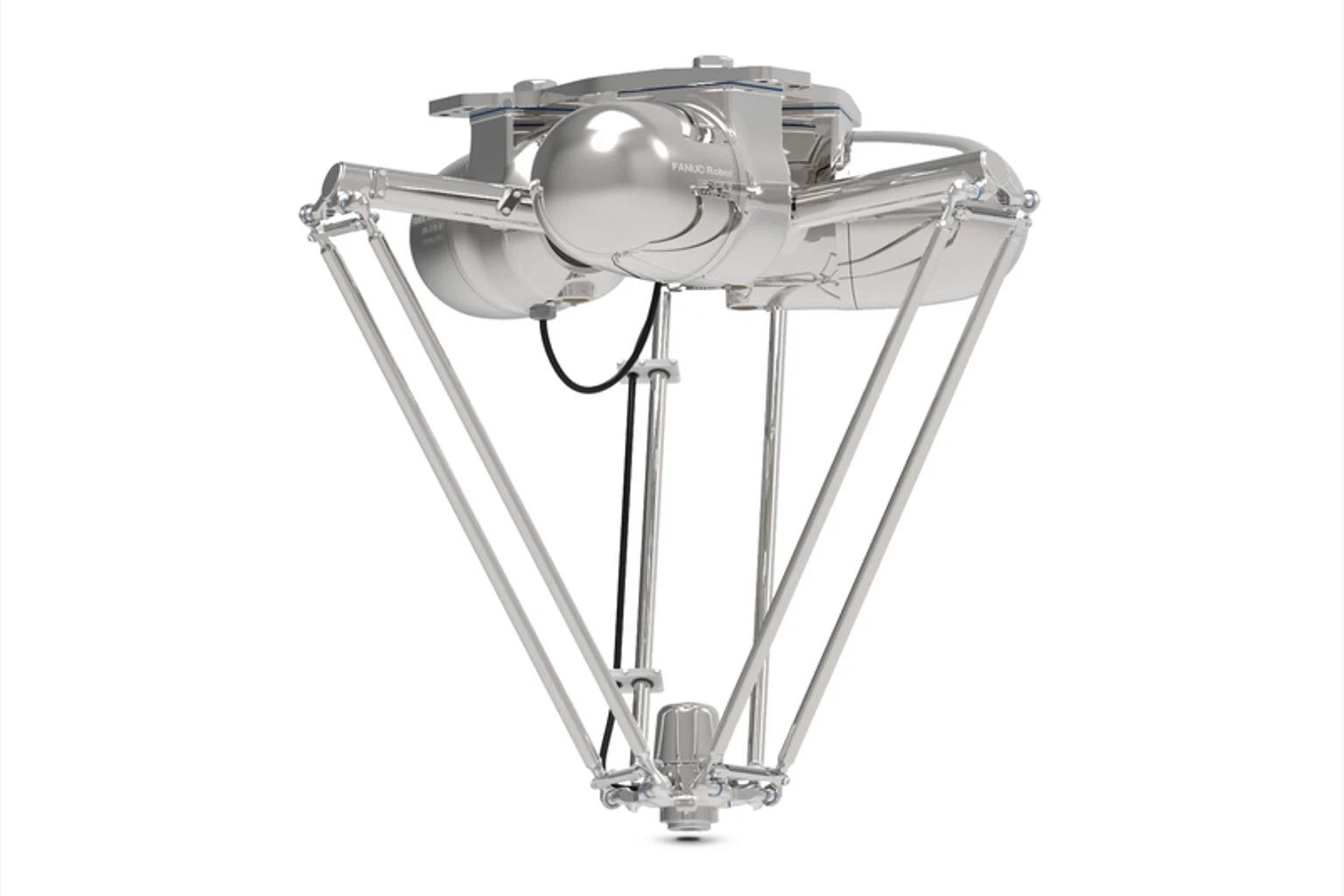

МодельFANUC DR-3iB/6 STAINLESS
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J4720 degrees
Maximum speed — J41714
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Environment — Acoustic noise level70 dB
General attributes — Payload0-10
General attributes — Robot Payload6 kg
General attributes — Robot Reach1200 mm
General attributes — Axes4
General attributes — Repeatability (ISO9283)±0.03 mm
General attributes — Mechanical weight250 kg
General attributes — J4 Moment0.025/ 0.06 (Nm)/Inertia (kgm²)
General attributes — J5 Moment*4)/ (Nm)/Inertia (kgm²)
General attributes — J6 Moment(Nm)/Inertia (kgm²)
General attributes — Robot footprintØ 760
Protection — Body standard/optionalIP69K
Protection — Wrist & J3 arm standard/optionalIP69K
Ценапо запросу
