Технические характеристики
ПроизводительFANUC

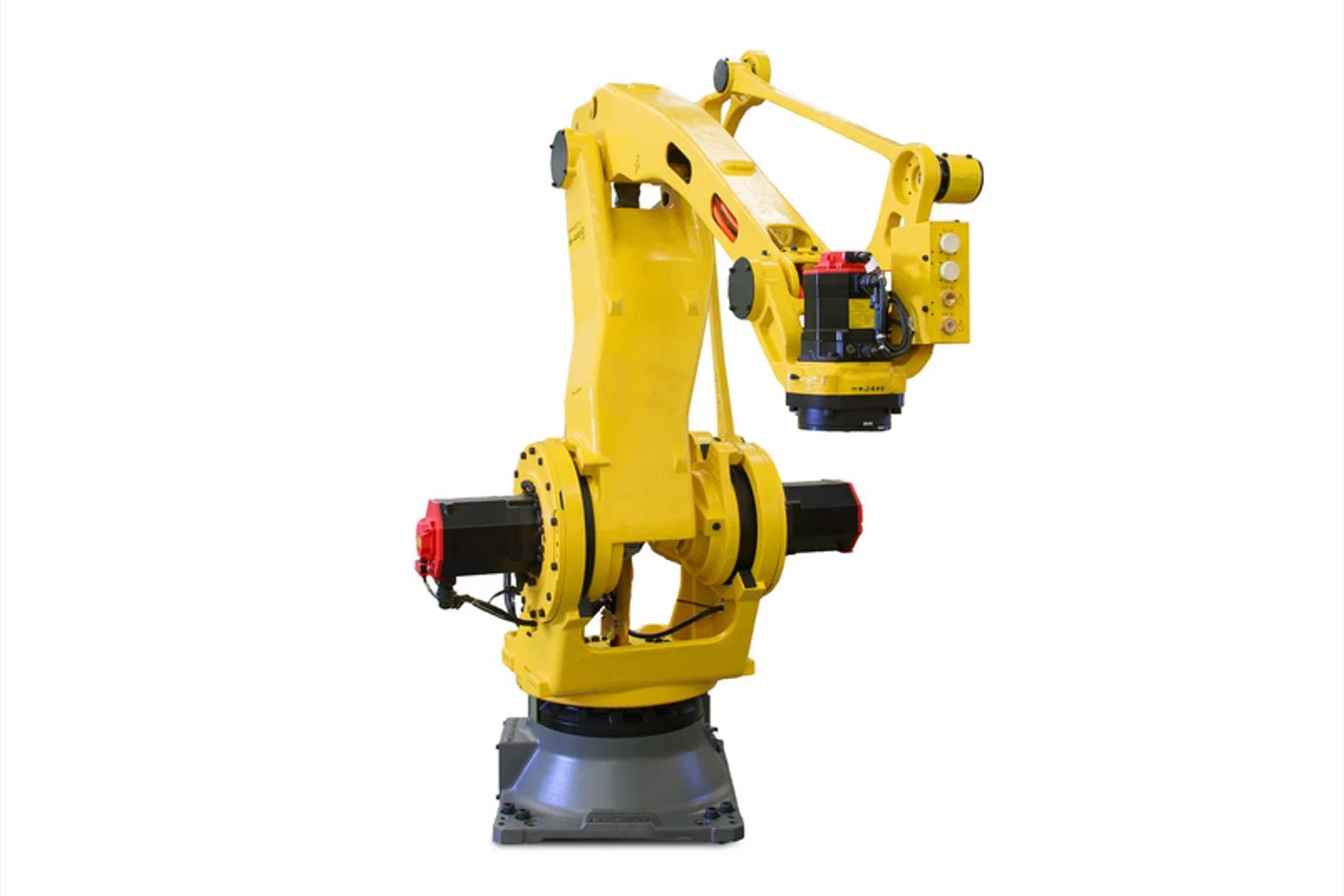

МодельFANUC M-410iC/110
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2125 degrees
Motion range — J3140 degrees
Motion range — J4720 degrees
Maximum speed — J1145 (°/s)
Maximum speed — J2130 (°/s)
Maximum speed — J3140 (°/s)
Maximum speed — J4420
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption3 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level75.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload110 kg
General attributes — Robot Reach2403 mm
General attributes — Axes4
General attributes — Repeatability (ISO9283)±0.05 mm
General attributes — Mechanical weight1030 kg
General attributes — J4 Moment53/ (Nm)/Inertia (kgm²)
General attributes — J5 Moment(Nm)/Inertia (kgm²)
General attributes — J6 Moment(Nm)/Inertia (kgm²)
General attributes — Robot footprint771 x 610
Ценапо запросу
