Технические характеристики
ПроизводительFANUC

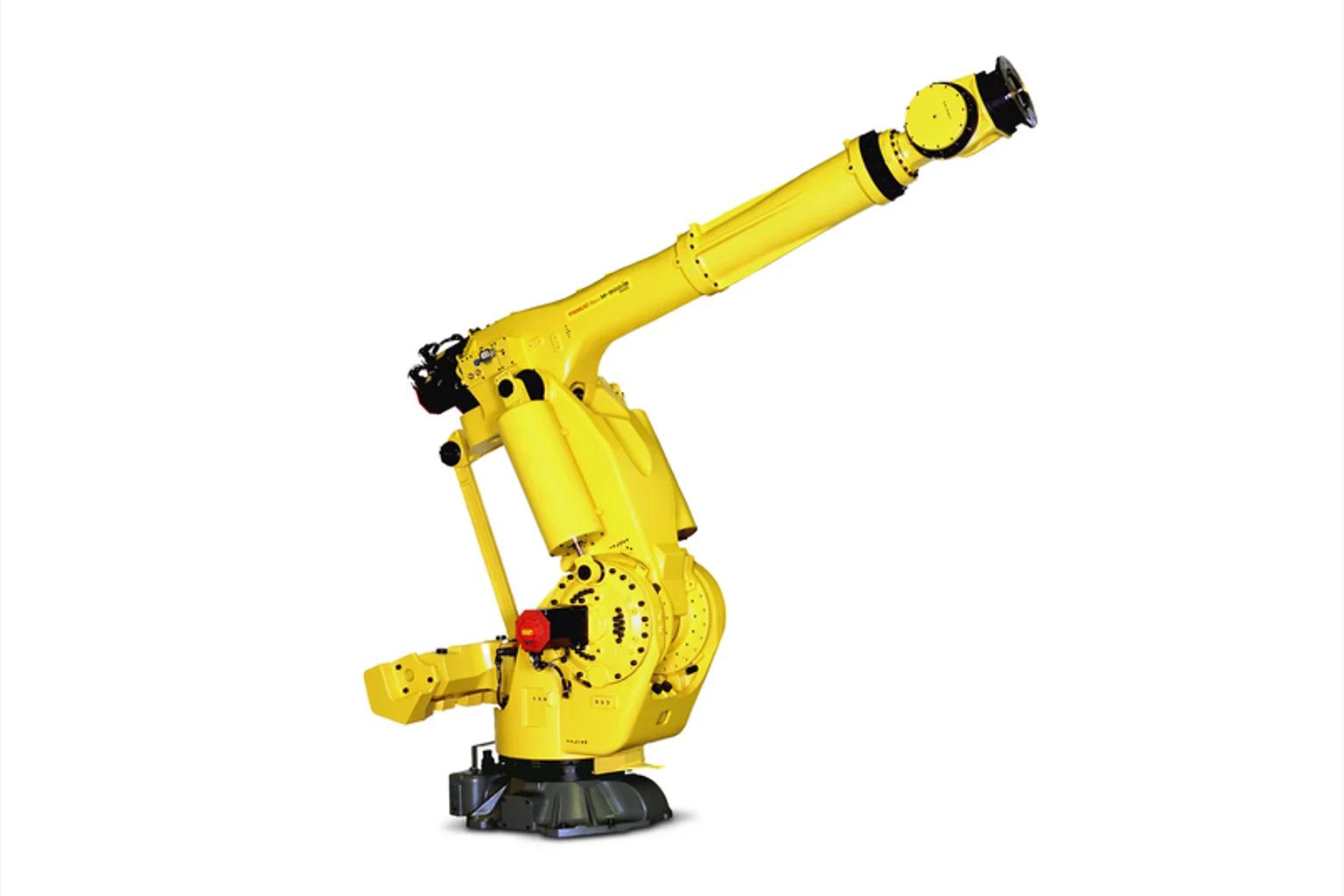

МодельFANUC M-900iB/400L
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2154 degrees
Motion range — J3160 degrees
Motion range — J4720 degrees
Motion range — J5244
Motion range — J6720
Maximum speed — J180 (°/s)
Maximum speed — J280 (°/s)
Maximum speed — J380 (°/s)
Maximum speed — J4100
Maximum speed — J5100 (°/s)
Maximum speed — J6160 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level76.3 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload400 kg
General attributes — Robot Reach3704 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.1 mm
General attributes — Mechanical weight3150 kg
General attributes — J4 Moment3400/ 1098 (Nm)/Inertia (kgm²)
General attributes — J5 Moment3400/ 1098 (Nm)/Inertia (kgm²)
General attributes — J6 Moment1725/ 444 (Nm)/Inertia (kgm²)
General attributes — Robot footprint1009 x814
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
