Технические характеристики
ПроизводительFANUC

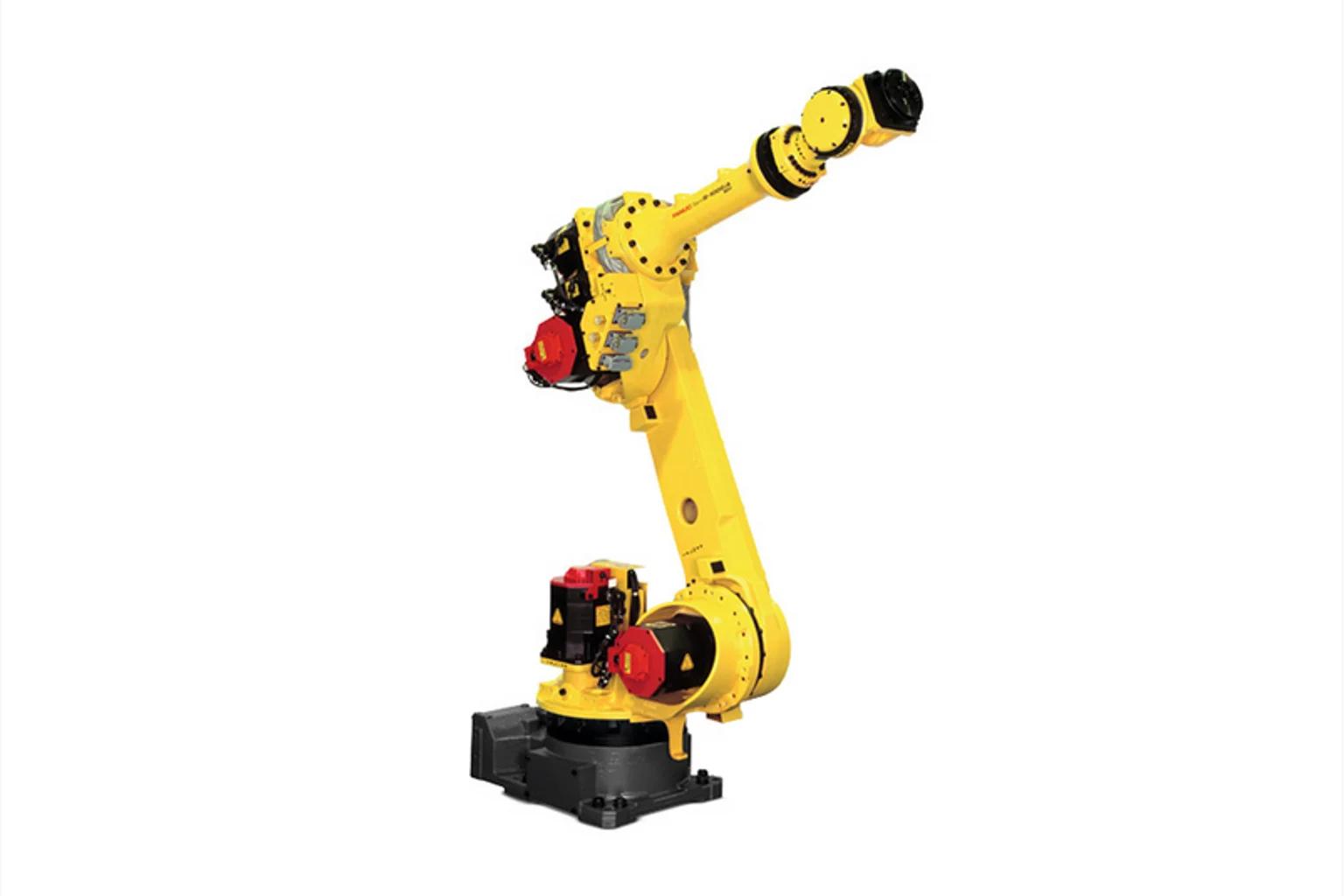

МодельFANUC R-1000iA/80H
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1360
Motion range — J2245 degrees
Motion range — J3215 degrees
Motion range — J420 degrees
Motion range — J5720
Maximum speed — J1185 (°/s)
Maximum speed — J2180 (°/s)
Maximum speed — J3180 (°/s)
Maximum speed — J4180
Maximum speed — J5500 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level70 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload80 kg
General attributes — Robot Reach2230 mm
General attributes — Axes5
General attributes — Repeatability (ISO9283)±0.03 mm
General attributes — Mechanical weight610 kg
General attributes — J4 Moment–/ 48 (Nm)/Inertia (kgm²)
General attributes — J5 Moment–/ 25 (Nm)/Inertia (kgm²)
General attributes — J6 Moment-/ - (Nm)/Inertia (kgm²)
General attributes — Robot footprint605 x 450
Protection — Body standard/optionalIP54/IP56
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
