Технические характеристики
ПроизводительFANUC

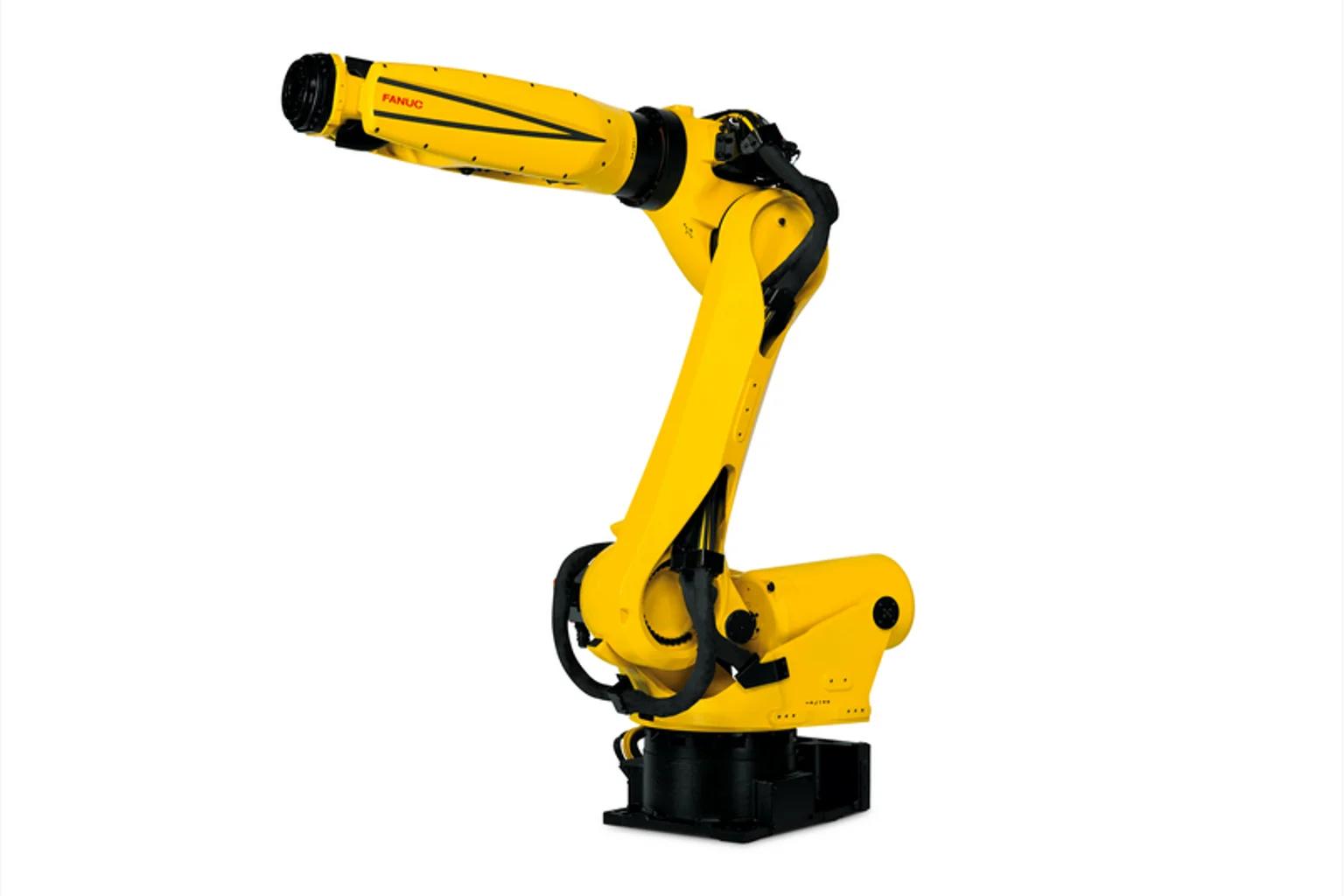

МодельFANUC R-2000iD/100FH
КатегорияПромышленные роботы
ControllerR-30iB Plus Controller
Motion range — J1370
Motion range — J2140 degrees
Motion range — J3234 degrees
Motion range — J4420 degrees
Motion range — J5250
Motion range — J6420
Maximum speed — J1105 (°/s)
Maximum speed — J2130 (°/s)
Maximum speed — J3130 (°/s)
Maximum speed — J4200
Maximum speed — J5160 (°/s)
Maximum speed — J6300 (°/s)
Electrical connections — Value (V)380-575 V
Electrical connections — Average power consumption2.5 kW
Integrated Services — Integrated signals on upper arm In/Out8/8
Integrated Services — Integrated air supply2
Environment — Acoustic noise level69.8 dB
Environment — Ambient Temperature0-45
General attributes — Payload0-10
General attributes — Robot Payload100 kg
General attributes — Robot Reach2605 mm
General attributes — Axes6
General attributes — Repeatability (ISO9283)±0.05 mm
General attributes — Mechanical weight1150 kg
General attributes — J4 Moment850/ 90 (Nm)/Inertia (kgm²)
General attributes — J5 Moment850/ 90 (Nm)/Inertia (kgm²)
General attributes — J6 Moment450/ 50 (Nm)/Inertia (kgm²)
General attributes — Robot footprint678 x 536
Protection — Body standard/optionalIP54
Protection — Wrist & J3 arm standard/optionalIP67
Ценапо запросу
